| 회로보호기 |
|
 |
회로보호기

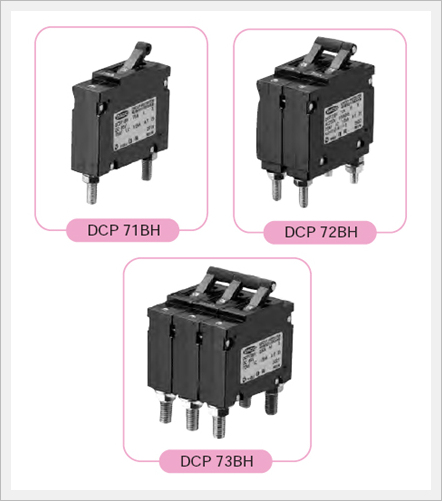

( Model Number : DCP 70BH )
|
|
|
|
|
|
 Click to enlarge image |
|
Features
- Bolt Terminal type
- Toggle lever type
Application
- Tececom. equipment, Computer device
- Power supply device
- OA equipment, Medical equipment
- Robert
- Sound facilities
- Various control panel
Specification
| Model |
DCP 70BH
|
| No. of poles |
1 Pole, 2 Pole, 3 Pole
|
| Rated current (A) |
60, 75, 100A
|
| Rated interruption capa. (kA) |
1.5kA (AC 220V), 1.0kA (DC 65V), 1.0kA (AC 380V)
|
| Inner circuit/ Accessory |
Series, Series type with aux. S/W, Series type with alarm S/W, Switch only, Switch type with aux. S/W
|
| Insulation resistance |
100M Ohm (measured with 500V megger)
|
| Rated withstand voltage |
1 min. at 1500V, AC 50/60Hz
|
| Vibration resistance |
Approximately 10G (10 to 100Hz)
|
| Life expectancy |
Minimum 10,000 cycles (at 6 operations per minute)
|
| Trip characterisitics |
Instant(I), High(H), Middle(M), Low(L)
|
| Ambient temperature |
-10°C ~ 60°C
|
| Aux. contact capacity |
AC 250V : 3A, DC 65V : 3A
|
|
|
