| 회로보호기 |
|
 |
회로보호기

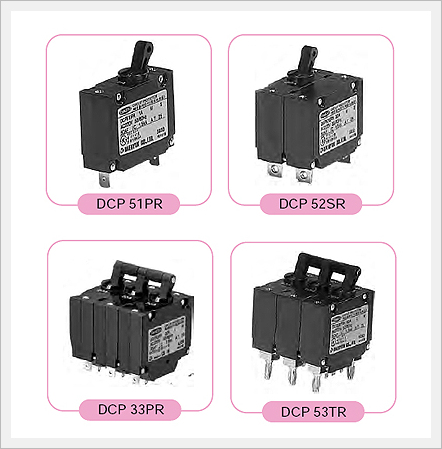

( Model Number : DCP 30PR.SR / 50PR.ST.TR )
|
|
|
|
|
|
 Click to enlarge image |
|
Features
- Various current ratings
- Terminal type: Plug, Side screw
- DIN rail mounting available by socket
- Toggle lever type
- 1 Handle for 2 poles and 3 poles available(N/H - Handle available for 50AF
- TR terminal: available only at 50AF
- Plug terminal: available up to 30A
Application
- Telecom unit
- FA/OA equipment
- Computer device
- Medical equipment
- Vending machine
- Various control panel
Specification
| Model |
DCP 30PR, DCP 30SR, DCP 50PR, DCP 50SR, DCP 50TR
|
| No. of poles |
1 Pole, 2 Pole, 3 Pole
|
| Rated current (A) |
0.3, 0.5, 0.75, 1, 2, 3, 4, 5, 7, 10, 15, 20, 25, 30, 40, 45, 50A
|
| Rated interruption capa. (kA) |
1.5kA (AC 220V), 1.0kA (DC 65V)
|
| Inner circuit/ Accessory |
Series, Parallel, Relay, Series type with aux. S/W, Switch only, Switch type with aux. S/W
|
| Insulation resistance |
100M Ohm (measured with 500V megger)
|
| Rated withstand voltage |
1 min. at 1500V, AC 50/60Hz
|
| Vibration resistance |
Approximately 10G (10 to 100Hz)
|
| Life expectancy |
Minimum 10,000 cycles (at 6 operations per minute)
|
| Trip characterisitics |
Instant(I), High(H), Middle(M), Low(L)
|
| Ambient temperature |
-10°C ~ 60°C
|
| Aux. contact capacity |
AC 250V : 3A, DC 65V : 3A
|
|
|
